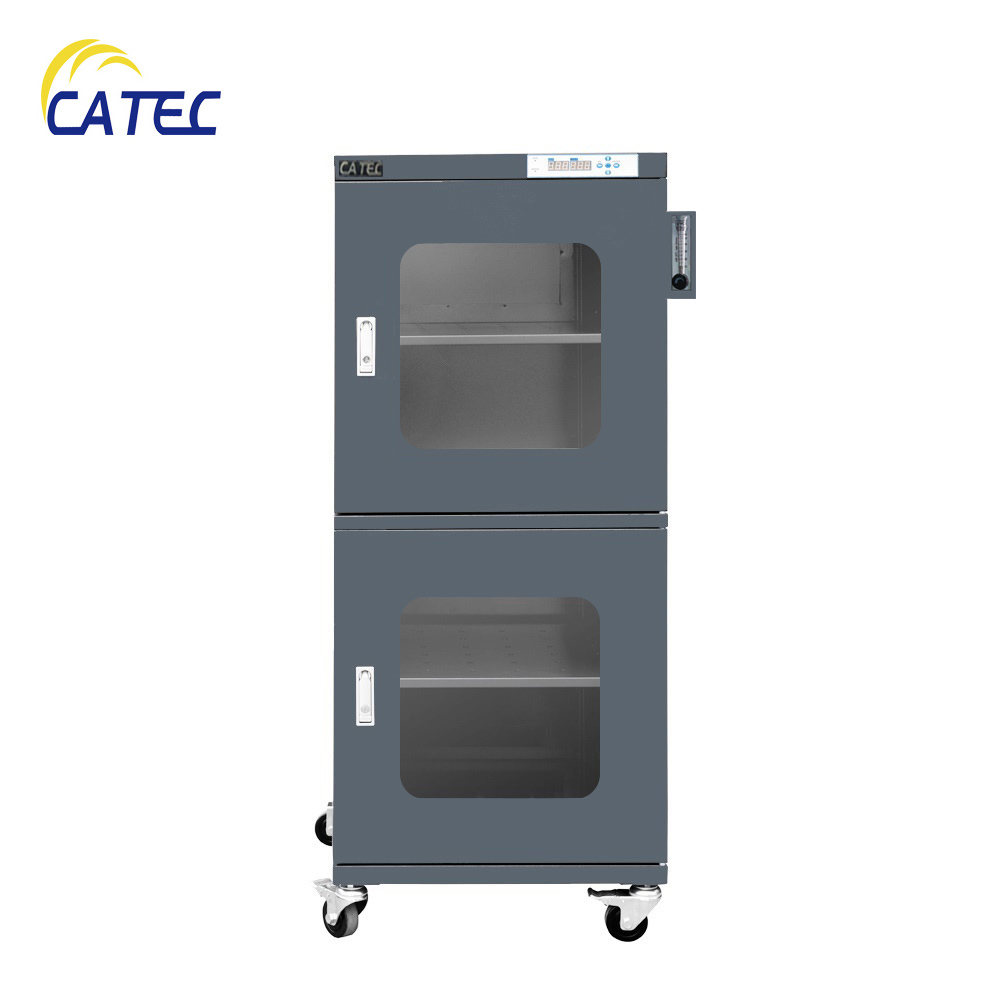

Desiccant dry cabinet DM3-UN540E
Specification:
Storage capacity:540L
Shelf Quantity: 3,adjustable
Outside dimensions:W598*D710*H1465mm
Inside dimensions:W596*D682*H1298mm
power supply: 85-265V, 50Hz
humidity range:1-5%RH
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1.quality LED disply panels with resolution 0.01℃, 0.01%RH, imported humidity sensor with error of ±2%RH, 0.5℃;
2.High grade 1mm and 1.2mm cold rolled plate, reinforced structure design, high intensity;
bearing, every shelf can bear over 80kg;
3.3.2mm toughened glass.Zinc alloy lock with air tightness;
4.Power supply: AC power 85V~265V 50/60Hz;
5. ESD safe high intensity truckles;
6. Cool looking of Dark green surface for customer’s options.
7. Designed as per IPC/JEDEC J-STD-033C; CE certified.
8. Nitrogen gas input connection, with a settable flow meter, for better energy saving,With our software control, n2 will be saved for up to 70%, compared to the normal n2 system without program control.The inside humidity can be reduced to 1% in a few minutes when you start the n2 injection, When you stop using N2 gas, the cabinet still works to reduce humidity for normal usage.
9. other customized optional funtions, such as alarming, data logging, networking, etc.
Special options for customer's demands:
1) data logging systemn with CATEC software by USB connection with computer for H&Tdata reading and printing;
2) code lock for safety;
3) alarm system with light tower;
4) high flow air injection system;
5) stainless steel cabinet;
