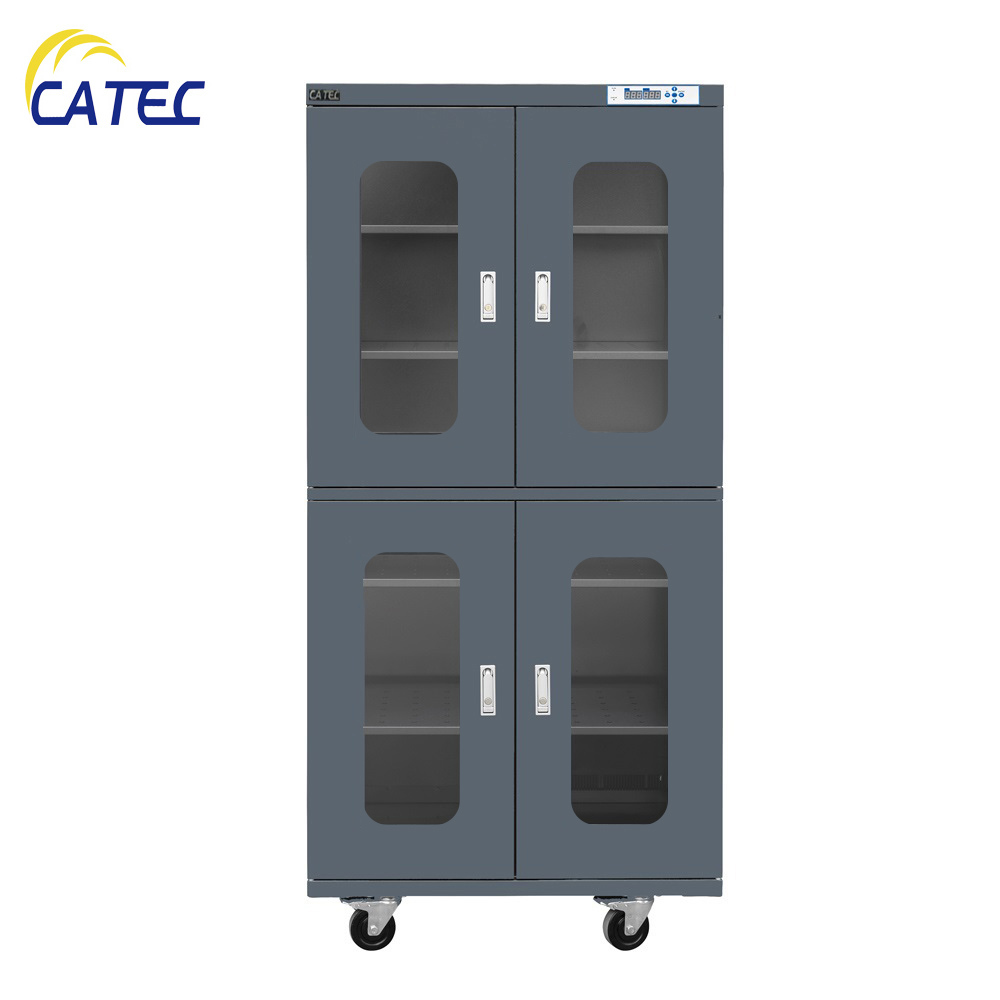

Desiccant dry cabinet DM3-U870E
Specification:
Storage capacity:870L
Shelf Quantity: 5,adjustable
Outside dimensions:W900*D600*H1890mm
Inside dimensions:W898*D572*H1698mm
power supply: 85-265V, 50Hz
humidity range:1-5%RH
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1.LED display panels, Honeywell humidity sensor with error of ±3%RH.
2.High grade 1mm and 1.2mm quality steel board, reinforced structure
design, high intensity
bearing, every shelf can bear over 100kg;
3.3.2mm toughened glass for each window, total 4 windows;
4.Zinc alloy lock with air tightness;
5.ROHS certified surface painting with Dupont powder; Cool looking surface
for Anti ESD, static
dissipative (103 to 109 ohm);
6.Power supply: AC power 85V~265V 50/60Hz;
7.ESD safe high intensity truckles of which two in front are brakable;
8.Latest new dry unit for ultra-low humidity type,
after door open for 30 seconds, recovery time ≤15mins for <10% RH and ≤30mins for <5% RH;
9.Designed as per IPC/JEDEC J-STD-033B; CE certified;
Special options for customer's demands:
1)USB/RS232 port data logging system
2) high flow air injection system,5-60/300LPM;
3) independent segregated compartments;
4) stainless steel material;
5) low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage.
9)nitrogen control box;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15) other options
